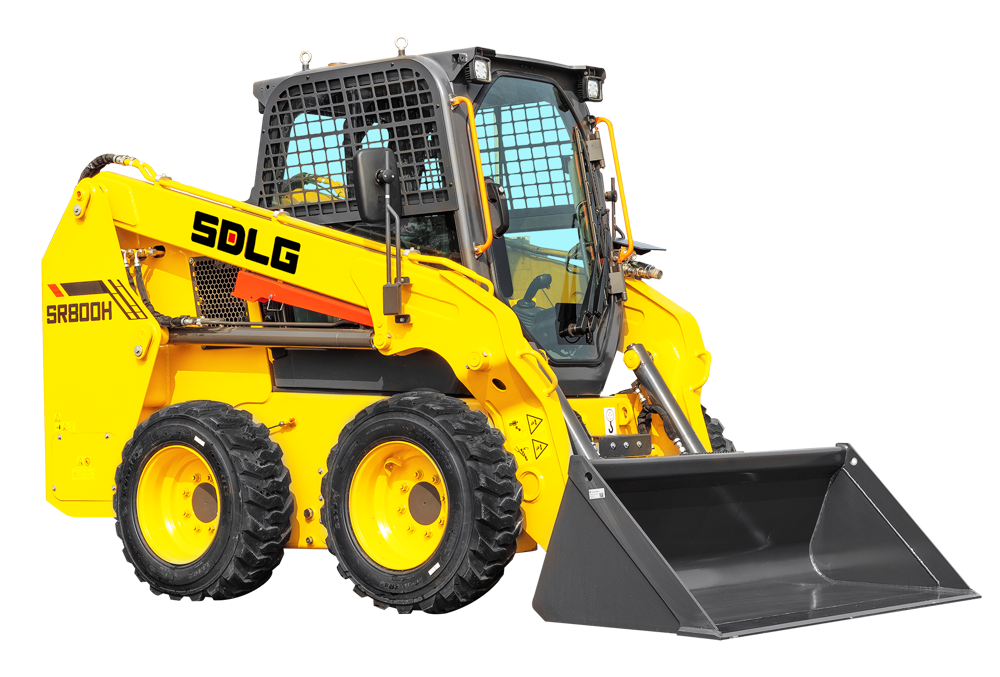

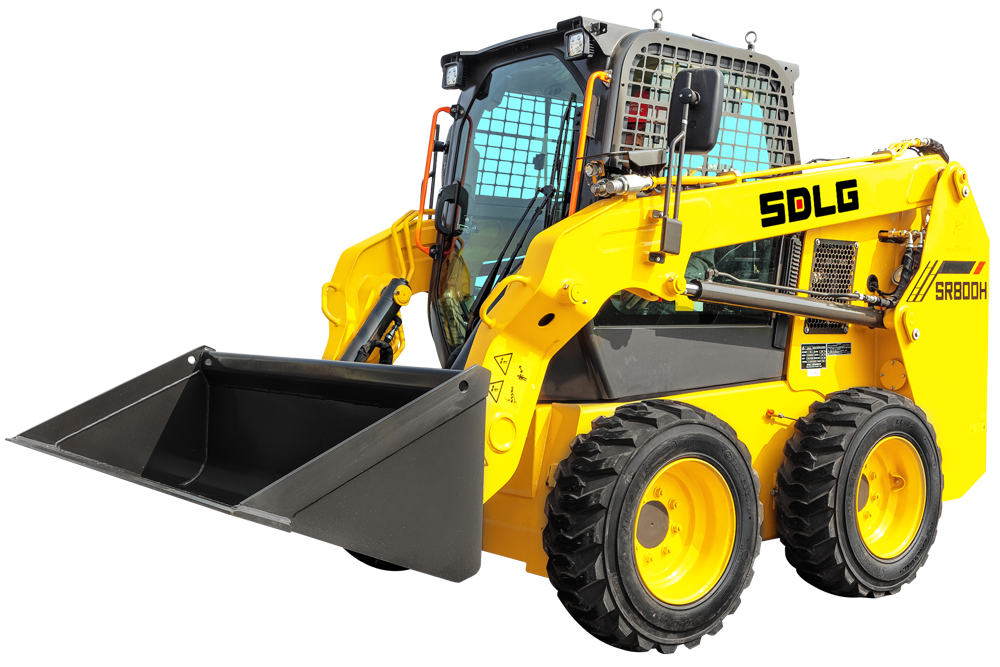

Skid-Steer Loader SR800H
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
1.The SR800H is equipped with a reliable Weichai engine providing 36.8Kw power for optimal working performance.
2.Within the one-piece sealed ROPS cab you will find an air suspension seat that includes heat and ventilation, keyless start, and integrated keypads, this unit also provides all LED light, rotary warning light, USB interface, reading light, radio, storage box, cigarette lighter, mobile phone case, water cup holder.
3.Leading in class closed hydrostatic transmission system with 0-11.5Km/h infinitely spped control
4.Daily maintenance service points can be easily achieved through the tilt-up cab and rear door
5.This unit also provide a wide range of attachments such as sweeper,fork etc for different applications.
Technical Parameter
Standard bucket capacity ,mu00b3 0.4
Rated loading capacity,Kg 820
Operating weight,Kg 3160
Engine model WP3.2G50E433
Rated power,kW (hp) 36.8 (50)
Rated engine speed,rpm 2500
Displacement,ml 3170
Speed,km/h 0uff5e11.5
Breakout force ,kN u226520
Main relief set pressure,bar 215
Total cycling time u22647.9S
Fuel tank,L 82
L Overall length,mm 3405
W Overall width,mm 1727
H Height to top of cab,mm 2000
A Wheel base,mm 1072
B wheel track,mm 1375
C Reach at max. lift and dump,mm 585
D Dump height at max. lift,mm 2390
E Bucket hinge pin height at max. lift,mm 3060
F Departure angleuff0cu00b0 26
Max. dump angleuff0cu00b0 40
G Ground clearance,mm 185
H Turning radius(outsid of bucket),mm 2070
